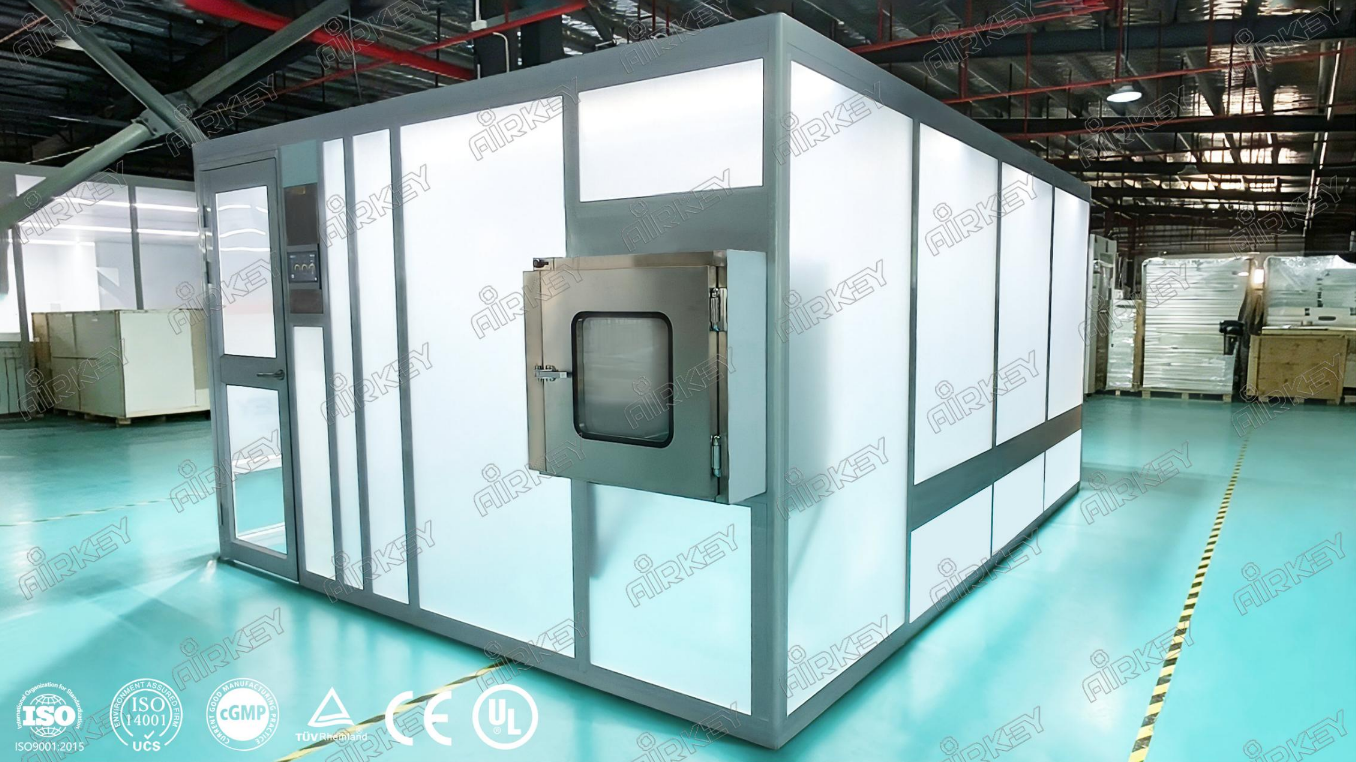

ISO 6 Modular Cleanroom Solution for Cell Technology Research
Cell technology laboratories require highly controlled environments to minimize contamination risks and maintain stable experimental conditions.
For biological research, cell culture, and biotechnology applications, cleanroom systems must provide reliable air filtration, controlled personnel movement, stable cleanliness levels, and flexible laboratory layouts.
Airkey designed and manufactured an ISO 6 modular cleanroom solution for a cell technology laboratory project in Oman. The Light Series modular cleanroom integrates EC FFU filtration, H14 HEPA filters, intelligent environmental monitoring, controlled personnel and material flow, and factory-prefabricated construction to provide a reliable clean environment for cell research applications.
Project Overview
| Item | Specification |
|---|---|
| Project | Cell Technology Laboratory Modular Cleanroom |
| Location | Oman |
| Industry | Biotechnology / Cell Technology |
| Application | Cell Research Laboratory |
| Cleanliness Class | ISO 6 |
| Area | 15.54㎡ |
| Internal Height | 2.2 m |
| Series | Light Series |
Customer Requirements
The customer required a compact and reliable cleanroom environment for cell technology research.
The main requirements included:
- ISO 6 contamination control environment
- Stable airflow and filtration performance
- Efficient personnel and material transfer
- Real-time environmental monitoring
- Flexible modular structure for future laboratory changes
Engineering Challenges
Maintaining Stable ISO 6 Cleanliness
Cell research processes are highly sensitive to airborne particles and contamination.
A stable clean environment is essential to support laboratory operations and reduce risks caused by airborne contaminants.
Efficient Personnel and Material Flow
Laboratory activities require controlled movement of operators and materials.
The cleanroom needed separate procedures for personnel entry and material transfer to reduce contamination introduction.
Flexible Laboratory Expansion
Research facilities often require future adjustments due to changing equipment layouts and experimental requirements.
A modular cleanroom design provides flexibility for relocation, expansion, and modification.
Airkey Modular Cleanroom Solution
Factory-Prefabricated Modular Cleanroom System
Airkey applied a factory-prefabricated modular construction method for this ISO 6 cell technology laboratory.
All major components were manufactured and assembled before shipment, reducing onsite installation time and improving quality consistency.
As a professional modular cleanroom manufacturer, Airkey provides customized cleanroom systems for biotechnology, pharmaceutical, medical device, and laboratory applications.
Learn more about Airkey modular cleanroom solutions:
➡️ https://www.airkeyx.com/module-cleanroom/
High-Strength Aluminum Modular Structure
The cleanroom uses a high-strength aluminum alloy frame with anodized surface treatment.
The structure provides:
- Excellent corrosion resistance
- Stable mechanical strength
- Cleanroom-compatible surfaces
- Long-term durability
The modular structure allows flexible installation according to different laboratory environments.

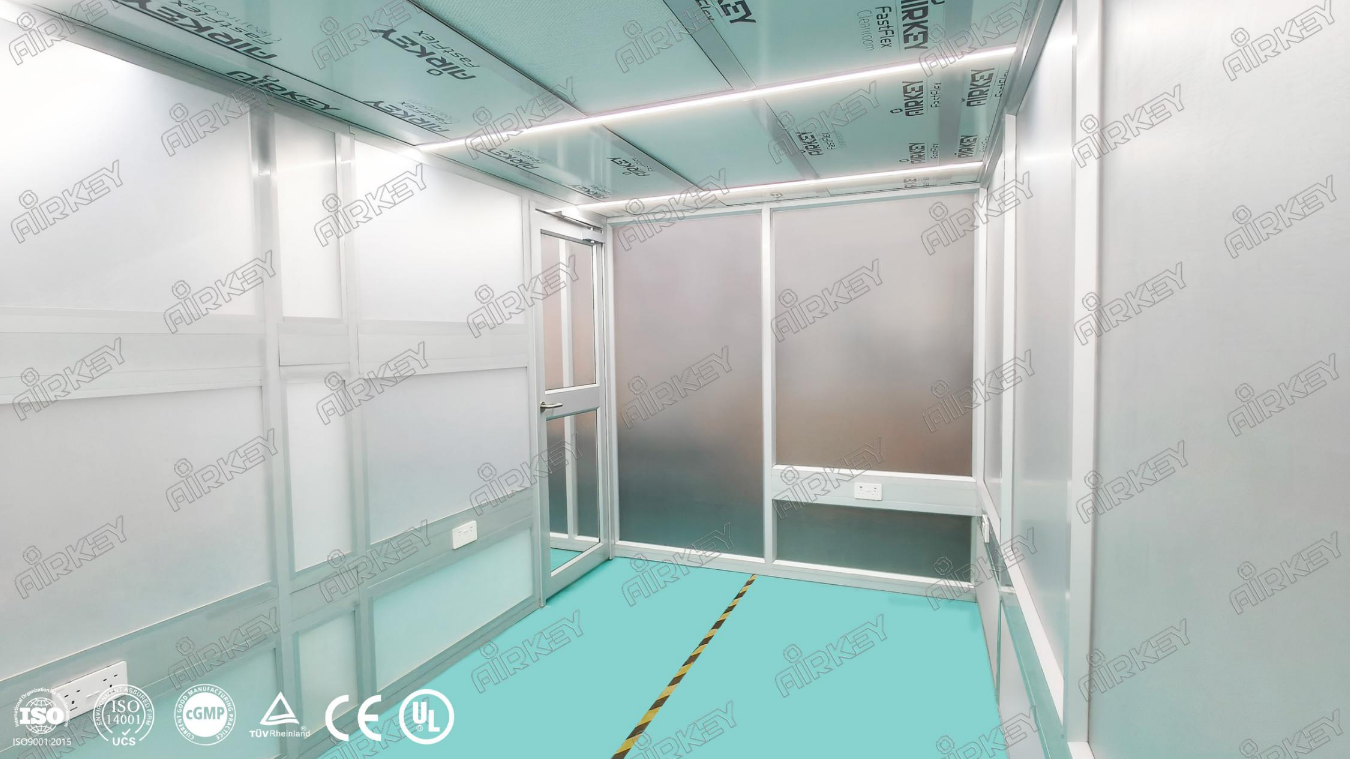

Anti-Static Acrylic Wall System
Transparent anti-static acrylic panels are used as enclosure materials.
The design provides:
- High visibility for laboratory operation
- Anti-static protection
- Improved contamination control
- Easy observation of internal processes
Embedded sealing strips between panels improve airtightness and reduce particle infiltration.

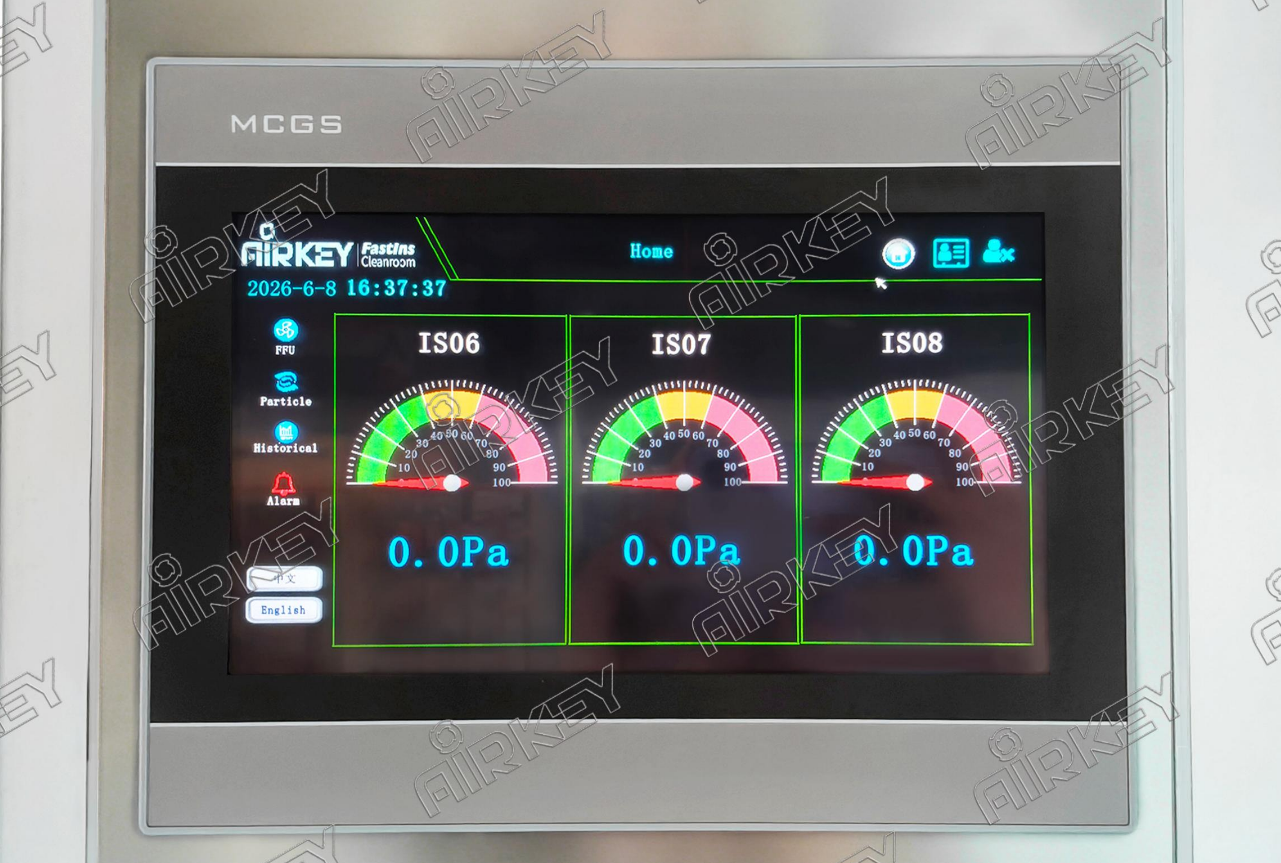

Intelligent Environmental Monitoring System
The cleanroom integrates an intelligent control system for environmental monitoring and operation management.
Functions include:

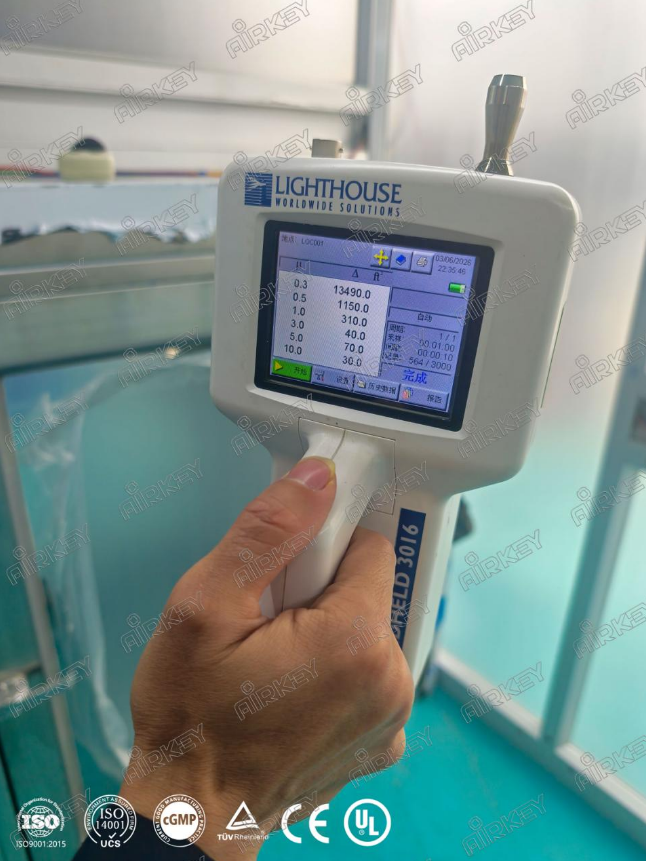

- Airborne particle monitoring
- Differential pressure monitoring
- FFU control
- Lighting control
- Historical data recording
This allows operators to monitor cleanroom conditions and maintain stable operating performance.
Controlled Personnel and Material Transfer
The cleanroom layout includes:
Personnel Entry
- Changing room
- Airlock / buffer room
- Controlled access process
Material Transfer

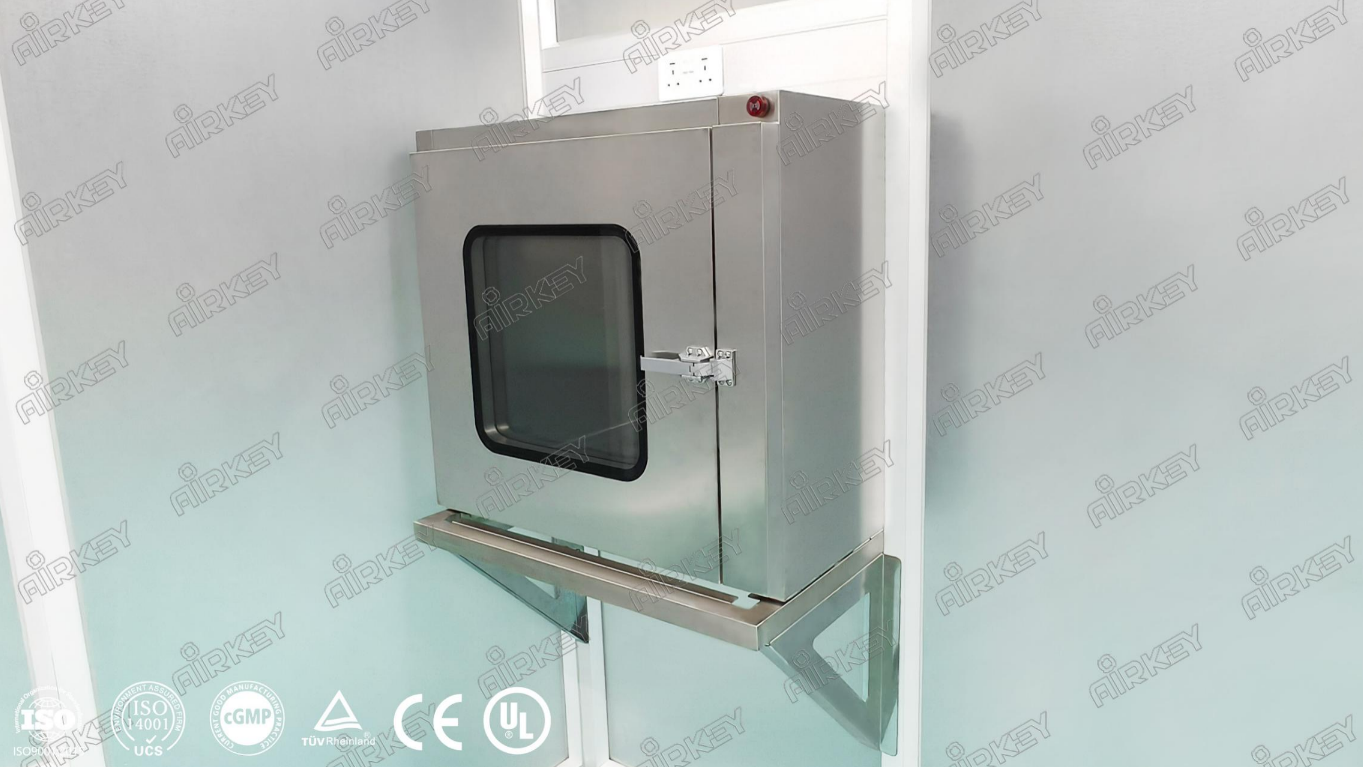

- Material pass box
- Separation between clean and non-clean areas
This design helps reduce contamination introduction during daily laboratory operation.

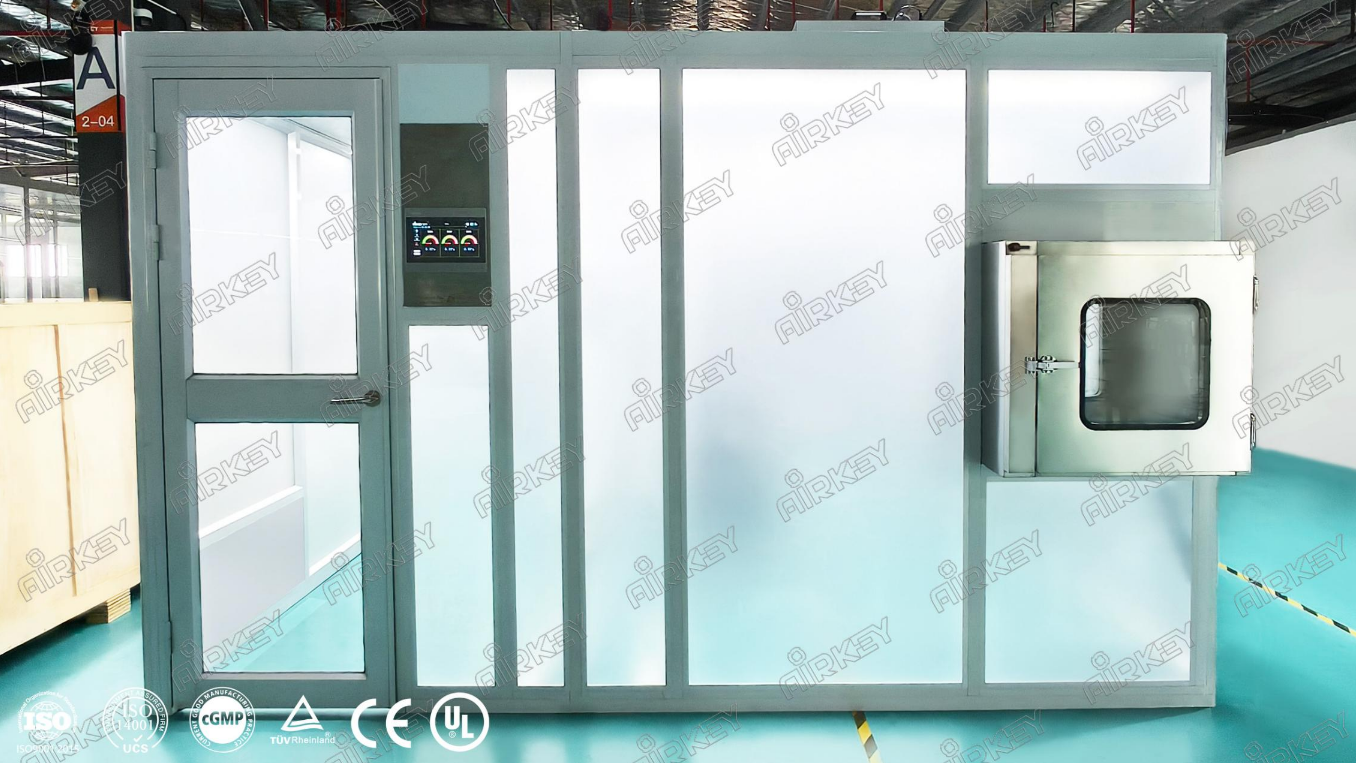

EC FFU with H14 HEPA Filtration
The cleanroom uses energy-efficient EC FFUs equipped with H14 HEPA filters.
The filtration system provides:
- High-efficiency particle removal
- Stable airflow performance
- Energy-efficient operation
- Reliable ISO 6 cleanliness control
Custom Modular Design for Future Expansion
The modular cleanroom structure supports future adjustment and relocation.
For research facilities requiring changing layouts or additional equipment, modular construction provides better flexibility compared with traditional fixed construction.
Airkey provides customized modular cleanroom systems according to:
- Cleanliness classification
- Laboratory workflow
- Equipment requirements
- Room dimensions
- Installation conditions
Explore Airkey's custom modular cleanroom system:
➡️ https://www.airkeyx.com/module-cleanroom/detail/index203.html
Technical Specifications
| Parameter | Specification |
|---|---|
| Cleanroom Classification | ISO 6 |
| Application | Cell Technology Research |
| Area | 15.54㎡ |
| Series | Light Series |
| Structure | Aluminum Alloy Modular Frame |
| Wall Material | Anti-static Acrylic Panel |
| Filtration | H14 HEPA |
| Air Handling | EC FFU |
| Monitoring | Particle & Pressure Monitoring |
| Installation | Factory Prefabricated Modular Construction |
Engineering Highlights
✓ ISO 6 modular cleanroom for cell technology research
✓ Professional modular cleanroom manufacturer solution
✓ EC FFU with H14 HEPA filtration
✓ Intelligent environmental monitoring system
✓ Anti-static transparent acrylic enclosure
✓ Controlled personnel and material flow
✓ Flexible modular laboratory design
✓ Factory-prefabricated construction
✓ Suitable for biotechnology and laboratory applications
Project Outcome
The completed ISO 6 modular cleanroom provides a reliable controlled environment for cell technology research in Oman.
Through modular construction, advanced filtration technology, intelligent monitoring, and optimized workflow design, Airkey delivered a flexible cleanroom solution that supports biotechnology research requirements while allowing future expansion and adjustment.
Why Choose Airkey as Your Modular Cleanroom Manufacturer?
Airkey specializes in designing and manufacturing modular cleanroom systems for:
- Biotechnology laboratories
- Cell and gene therapy
- Pharmaceutical manufacturing
- Medical device production
- Research institutions
With factory-prefabricated technology and customized engineering capabilities, Airkey helps customers achieve faster cleanroom deployment with reliable quality control.
FAQ
What cleanroom classification is required for cell technology laboratories?
Cell technology laboratories commonly require controlled environments such as ISO 6 or ISO 7 depending on the application and process requirements.
What filtration system is used in this ISO 6 cleanroom?
The project uses EC FFUs equipped with H14 HEPA filters to provide high-efficiency particle filtration.
Can modular cleanrooms be customized?
Yes. Airkey provides customized modular cleanroom solutions based on cleanliness level, layout, airflow requirements, and laboratory workflow.
Why choose a modular cleanroom instead of traditional construction?
Modular cleanrooms provide faster installation, factory quality control, flexible expansion, and easier future modification.
